Microprocessor Controlled
No AC Power Required
User adjustable, 3 rates of discharge. Voltage,
and  time termination.
LCD Display
Fan Cooled
200 Amp Clamps on 8' #4 cables
Made in U.S.A.  2 year warranty
We call it the "GODZILLA" of load testers. Built for high volume continuous duty use.  Test hundreds of 6, 8 or 12 volt starting or deep cycle batteries non stop. Capacity up to 1600 cold cranking amps.
Tests deep cycle battery capacity as a percent of reserve capacity. Detects bad cells. Built in thermal protection.

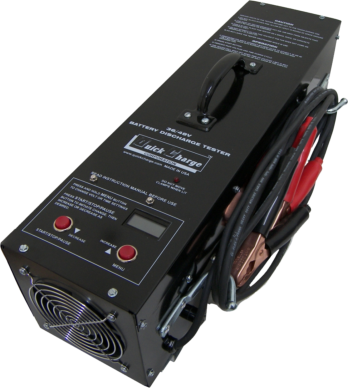

The "BD" Battery Dischargers
Large 2” x 5” x 6” Deep Carbon Pile.
Electronically Timed And Adjustable,  5-15 Seconds.
LCD Volt meter accurate to 500th of a volt.
Chemical Proof Heavy Duty Start/Stop Buttons.
Two Continuous Running Cooling Fans.
800 Amp Clamps on 48" #2 cables
Dimensions - H.W.D  8.5" x 14" x 11
Weight - 20 lbs.
Made in U.S.A.  1 year warranty
FEATURES
LITERATURE
FEATURES
LITERATURE
BATTERIES FOR:
FLOOR SCRUBBERS, GOLF CARS, EV's, MARINE/RV

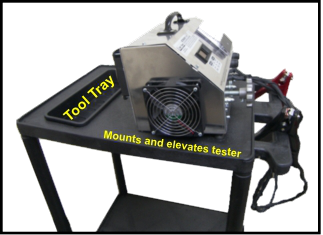

Optional Customized Wheeled Cart With Tool Tray
The "BDM" Battery Discharger
The Mini Version. Model: BDM6812
 For battery groups U1, 22NF, 24M, 27, 30, 31,
18-150AH
Dimensions: 7.5 x 6 x 6.5"
Weight: 5 lbs.
Microprocessor Controlled
No AC Power Required
User adjustable, 6 rates of discharge. 2, 5, 10, 15, 20 and 25 amps. For 6, 8 and 12 volt batteries. Voltage or time termination.
LCD Display
Fan Cooled
50 Amp Clamps on 5' #10 cables
Made in U.S.A.  2 year warranty
FEATURES:
Tests deep cycle battery capacity as a percent of reserve capacity. Detects bad cells. Built in thermal protection.
    UPS
    Communications
    Lighting
    Security & Alarm
    Medical Equipment
    Remote Monitoring
    Solar Energy Station
    Golf Carts
    Wheelchairs
    Scooters
BATTERIES FOR:
Quickly sort through 6,8, and 12 volt lead acid batteries to determine their ability to accept a charge.

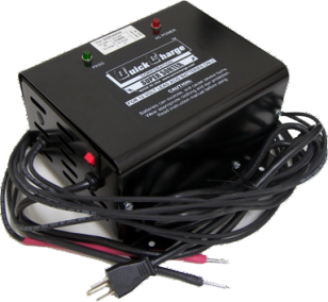

The Super Sorter
Battery Recovery Unit
FEATURES
Applies a momentary high voltage to break loose  stubborn sulfated batteries.
Pass/Fail visual and audible indication.
H.W.D:  5.5 x 8 x 8”,  Weight 7 lbs.
Made in U.S.A.  2 year warranty

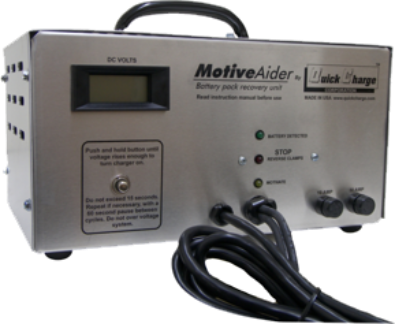

The Motiveaider
Battery Pack Recovery Unit
FEATURES
Applies a momentary high voltage to break loose  stubborn sulfated batteries
Warns of reverse connection
H.W.D:  5.5 x 12 x 6”,  Weight 10 lbs.
Digital volt meter
Made in U.S.A.  2 year warranty
As is often the case, many battery packs are left unattended, and in a severely discharged state. Many chargers on the market will not turn on in this condition. The Motiveaider instantly raises the voltage level of 24, 36, 48, and 72 volt packs so that they will take a charge.
SOME APPLICATIONS:
Golf Carts, EV's, Scissor Lifts, Pallet Trucks, Floor Scrubbers, and more.
MODEL
DC AMPS
DC VOLTS
Dimensions H.W.D in.
Weight lbs.
BD6812
25-56-75
6-8-12
7 x 8 x 22
16
BD1224
25-56-75
12-24
7 x 8 x 22
16
BD3648
25-56-75
36-48
7 x 8 x 22
16
SOME APPLICATIONS:
Battery Distributors, Battery Reclamation, Golf Car Sales, Warehouses, Fleet Operators
C1600 Carbon Pile Tester
