PDF OPERATING INSTRUCTIONS

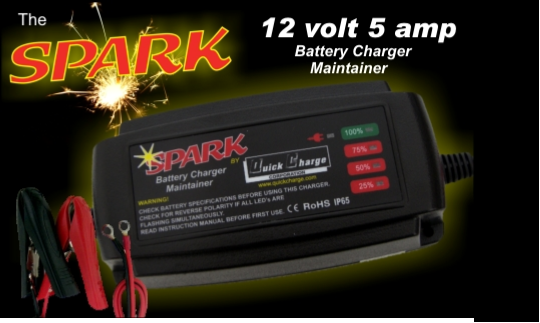

The Spark is a 4 stage charger maintainer designed for wet cell, and AGM starting, and deep cycle lead acid batteries. A series of LED's indicate charge progress, and charge mode. The Spark comes with interchangeable clamps and ring terminal ends. Mount it on equipment, or move it from vehicle to vehicle. The Spark is waterproof, and is IP65 Dust, and water splash resistant.
SPEC's:
Input: 100-240VAC, 47-63HZ. .8 amps @ 115 volts. .4 amps @ 230 volts
Output: 5 amp, 12 volt -14.7 max. 13.5 float.
Battery size: 20-100 amp hour
Polarity protected, current limited.
Weight: .77 lb.
Warranty: 2 Years
NOTE: The Spark is an imported product partially designed by Quick Charge Corp.

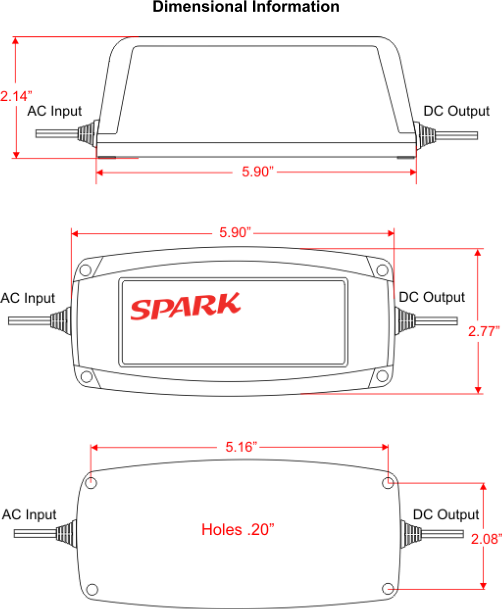

Dimensional Information
LVI
  - Low voltage indicators
GOLF CARTS, FLOOR SCRUBBERS, MARINE, FORKLIFTS, AERIAL LIFTS, ELECTRIC VEHICLES, RV's.
* Notifies operator audibly and    visually of low battery condition. * Saves battery from destructive    over discharge conditions. * Mounts discretely out of sight.    Remote mount LED to operator    panel. * Can automatically disconnect    battery and lock out load.    Override button gets you out of    trouble. * Available in 12, 24, 32, 36, 48,    64, 72 volt. * Adjustable alarm setting. * Ideal for rental equipment. * 1 1/2" x 2 3/4" x 5"    Made In U.S.A
OPERATING INSTRUCTIONS
PDF OPERATING INSTRUCTIONS
ONE controller replaces all other charger controllers or mechanical timers used in 25 amp chargers. Field programmable for 12, 24, 36, and 48 volt. One tricolor LED indicates (RED) bulk charge, (YELLOW) 80% charged, and (GREEN) finish. Set finish cycle to a fixed time or proportional to discharge on battery. Universal mounting pattern fits most cases. Easy installation.
Made in U.S.A.
Charger Controller
low battery alarm for lead acid batteries
